Well,
Following my musings about the really pants audio bandwidth from the Yaesu SCU-17 back here:
http://g0mgx.blogspot.co.uk/2015/05/whats-going-on-here-then.html
I've found an old external USB soundblaster soundcard thingamabob and hooked it up to my PC with the audio in and out directly to the PKT jack on the FT-DX5000 (the same connector the SCU-17 uses for audio to and from the radio).

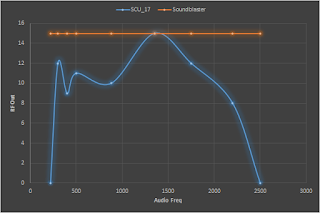

Here's the comparison between the two:
![]()
So the old battered USB soundcard has a completely flat audio response, the SCU-17 is totally pants. I am rather horrified at the frequency response from this expensive Yaesu unit - I don't think it's even fit for purpose!
What load of Dingos Kidneys.
Local conditions.
